In today's precision-driven industrial landscape, off-the-shelf components often fall short of meeting the unique demands of specialized machinery. For applications requiring compact, high-accuracy linear motion solutions, custom ground precision miniature ball screws—including our industry-leading Mia0401, Mia0401b, and Mia0601 models—stand out as the ultimate solution. At Shuntai, we specialize in non-standard ball screw customization, delivering tailored components that bridge the gap between standard designs and your project's exact engineering requirements.
A ball screw is a core mechanical component that converts rotational motion into smooth, efficient linear motion, and vice versa. Unlike traditional lead screws, ball screws use recirculating ball bearings between the screw shaft and nut, drastically reducing friction, boosting efficiency, and ensuring long-term, consistent performance. Our miniature ground ball screws are engineered for the most demanding compact applications, from medical devices and semiconductor equipment to industrial automation and robotics.
What Are Ground Precision Miniature Ball Screws?
Ground ball screws are manufactured using a precision grinding process, which delivers far tighter tolerances, superior surface finish, and higher positional accuracy compared to rolled (cold-formed) alternatives. This makes them the gold standard for applications where micron-level precision is non-negotiable.

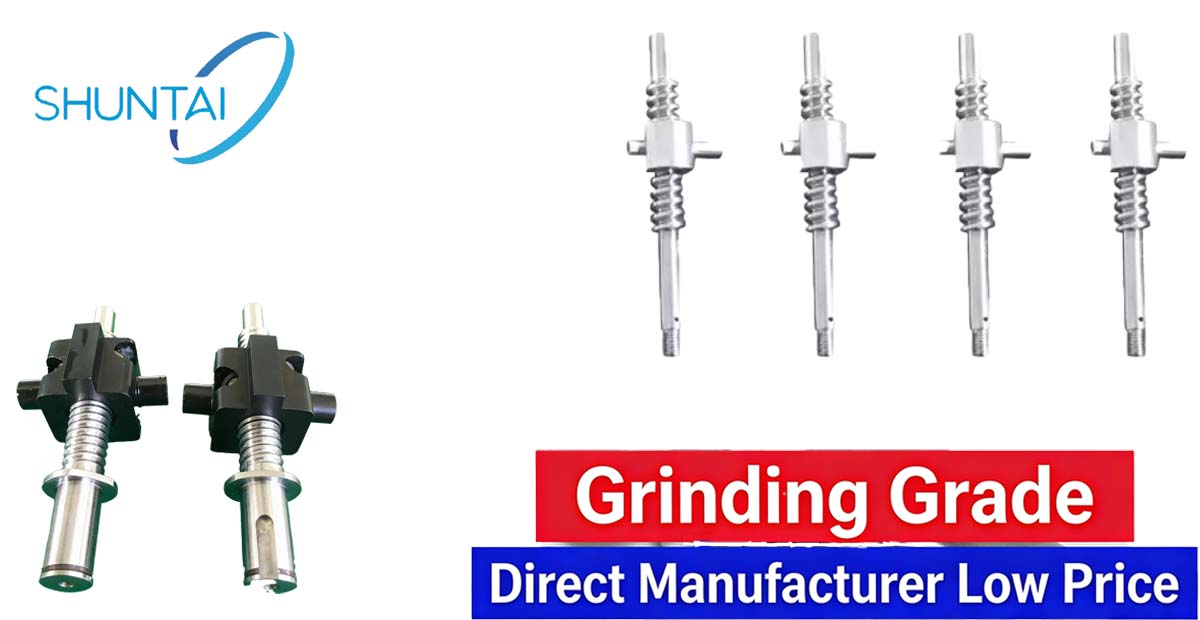

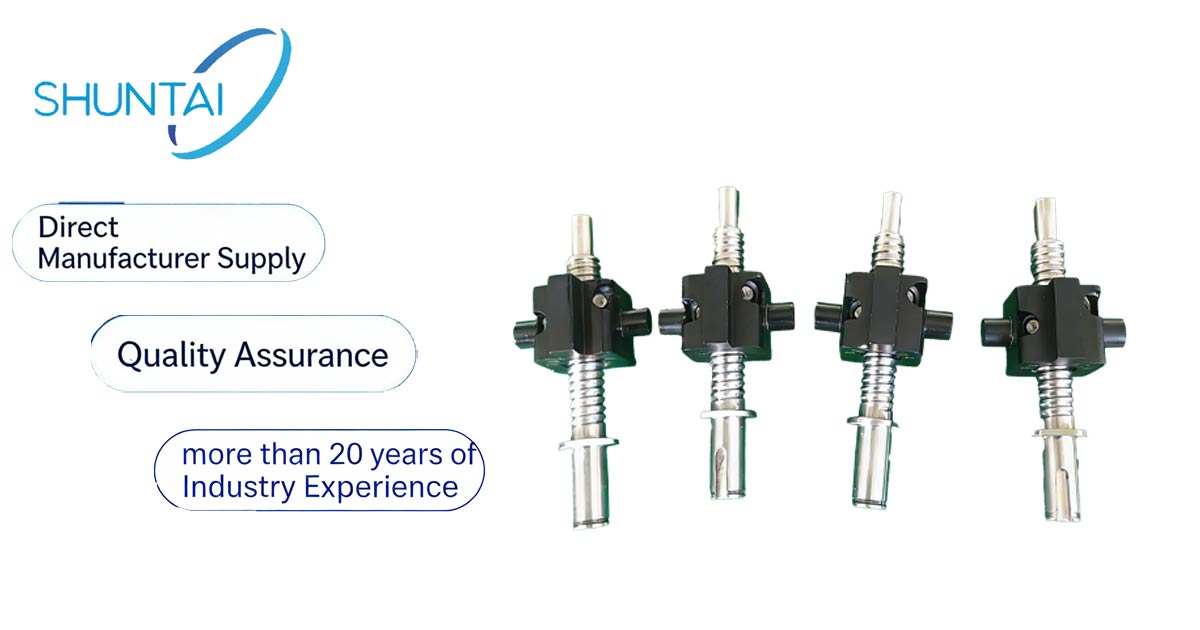

Our Mia0401, Mia0401b, and Mia0601 miniature ball screws are designed for compact, high-precision systems:
- Mia0401 / Mia0401b: Ideal for ultra-compact applications with 4mm nominal diameter, optimized for low-load, high-speed linear motion in small-scale machinery.
- Mia0601: A 6mm nominal diameter model, balancing compact size with enhanced load capacity for medium-duty miniature applications.
- All models are available in fully custom configurations, ensuring they fit your unique design constraints and performance needs.
- Why Choose Non-Standard Custom Ball Screws?
- Standard ball screws are designed for general-purpose use, but many industrial projects require components tailored to specific constraints. Non-standard (custom) ball screws are engineered to match your exact requirements, with modifications to dimensions, materials, manufacturing processes, and performance characteristics.
- Key Advantages of Custom Miniature Ball Screws:
- 1.Perfect Fit for Space-Constrained Designs
- Many compact machines—such as lab automation equipment, handheld medical tools, or miniature robotic arms—have strict dimensional limits. We customize length, diameter, lead, and flange configurations to fit your exact housing and mounting requirements, eliminating the need for costly design workarounds.
- 2.Material Optimization for Specialized Environments
Our standard miniature ball screws are crafted from GCr15 bearing steel, a high-carbon chromium steel renowned for its exceptional hardness, wear resistance, and fatigue strength—ideal for most industrial applications. For specialized environments, we offer custom material options, including:
• Stainless steel for corrosion resistance in medical, food processing, or marine applications
• High-temperature alloys for extreme heat environments
• Pre-hardened or case-hardened steels for enhanced load capacity
3.Tailored Performance for High Load or High Speed
Whether your application requires ultra-high speed, heavy load capacity, or zero-backlash precision, we can customize the ball screw design. We adjust lead, ball circuit design, and nut geometry to deliver the exact thrust capacity, speed, and positional accuracy your system demands.
4.Superior Manufacturing Process Options
We offer two primary manufacturing processes to match your performance and budget needs:
- • Ground screws: For ultra-precision applications requiring tight tolerances, high accuracy, and smooth operation.
- • Rolled screws: A cost-effective alternative for applications where high precision is still required, but budget is a priority.
- 5.Extended Service Life & Reduced Maintenance
- Our custom ball screws are built to last. By optimizing the design for your specific load, speed, and environment, we minimize wear and tear, resulting in a longer service life, reduced downtime, and lower total cost of ownership.
- • Medical Devices: Surgical robots, diagnostic equipment, and lab automation systems requiring ultra-precise, compact motion.
- • Semiconductor Manufacturing: Wafer handling equipment, inspection machines, and lithography systems demanding micron-level accuracy.
- • Industrial Automation: Pick-and-place machines, 3D printers, and small-scale linear actuators.
- • Aerospace & Defense: Compact guidance systems, optical positioning equipment, and satellite components.
- • Robotics: Miniature robotic arms, grippers, and collaborative robots (cobots).
- • Optics & Photonics: Laser cutting machines, optical alignment systems, and camera positioning equipment.
- Why Partner with Shuntai for Your Custom Ball Screw Needs?
- At Shuntai, we are a leading manufacturer of precision ball screws, with decades of experience in non-standard customization for global industrial clients. Here’s what sets us apart:
- ✅ Expert Customization: Our engineering team works closely with you to design a ball screw that perfectly matches your application’s requirements, from initial concept to final production.
✅ Premium Quality: All our ball screws are manufactured to the highest industry standards, with rigorous quality control at every stage of production.
✅ Fast Lead Times: We offer a 7-day production lead time for most custom orders, with shipping from Shanghai to global destinations.
✅ Global Support: We serve international clients with comprehensive technical support, ensuring seamless integration of our components into your systems.
✅ Competitive Pricing: We deliver high-precision custom solutions at competitive prices, without compromising on quality.
-
Conclusion
For applications that demand the highest precision, compact design, and tailored performance, Shuntai’s custom ground precision miniature ball screws (Mia0401, Mia0401b, Mia0601) are the ideal solution. Whether you need a non-standard dimension, specialized material, or enhanced performance, we have the expertise to deliver a component that elevates your machine’s performance.
Don’t let off-the-shelf components limit your design potential. Contact Shuntai today to discuss your custom ball screw requirements, and let our engineering team help you build a better, more efficient linear motion system.
