The precision "runway" of modern industry

In automation equipment, CNC machine tools and precision instruments, there is a seemingly simple but crucial core component - it is like an invisible track, carrying the high-speed and precise movement of the equipment, which is the linear guide. As a key component in the field of mechanical transmission, the accuracy of the linear guide directly determines the performance level of the entire equipment. Today, we will analyze this "precision runway" of modern industry in depth.

1. What is a linear guide?

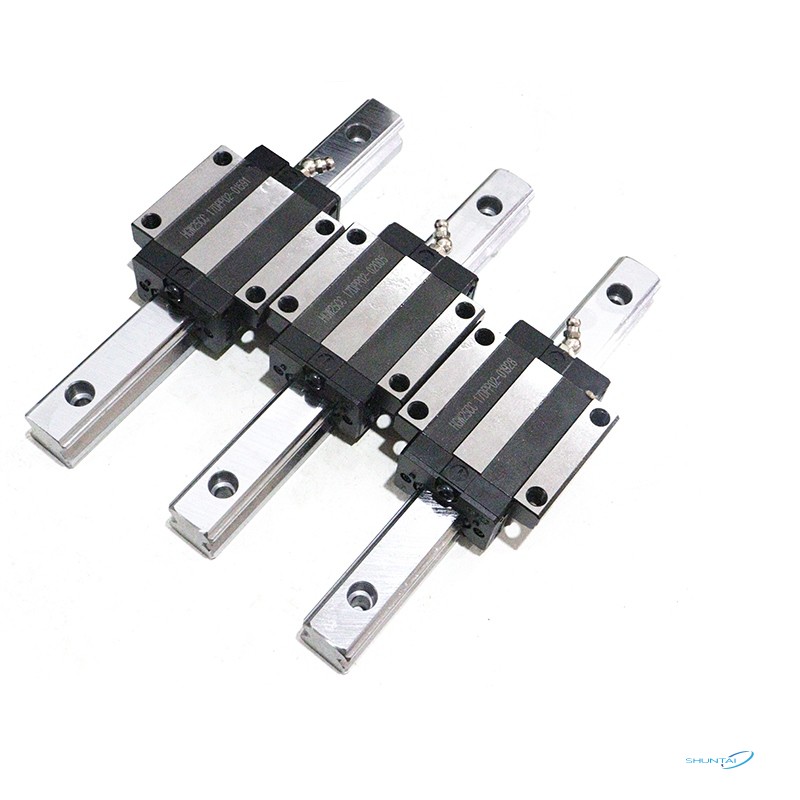

A linear guide is a precision transmission device used to achieve linear reciprocating motion. It consists of a guide rail and a slider. Through the circular motion of a steel ball or roller on the track, sliding friction is converted into rolling friction, thereby achieving high-precision, low-resistance linear motion.

Core features:

High rigidity: can withstand multi-dimensional loads

High precision: repeated positioning accuracy can reach micron level

Low friction: rolling friction coefficient is only 1/50 of sliding friction

Long life: rated life is usually tens of thousands of kilometers

2. Precision structure of linear guides

Guide rails

Made of high-quality alloy steel (such as GCr15) after overall quenching, the hardness reaches HRC58-62, and the surface roughness of the track after precision grinding is Ra≤0.2μm.

Slider assembly

Contains precision-machined raceways and returners to maintain the cyclic motion of the rolling elements. High-end products will use resin cages to prevent rolling elements from colliding with each other.

Rolling element system

Steel ball type: suitable for light and medium loads, cost-effective

Roller type: load-bearing capacity increased by 3-5 times, used in heavy load occasions

Ceramic balls: corrosion-resistant, lubrication-free, used in special environments

Sealing system

Multi-channel labyrinth seals + metal scraper plates, protection level can reach IP54 or above.

3. Innovation and cutting-edge technology

Self-lubricating technology

Intelligent monitoring

Integrated vibration sensor and temperature detection module to monitor the health status of the guide rail in real time.

Composite material

Ceramic coated guide surface + carbon fiber reinforced slider, 40% lighter and 25% stiffer.

Ultra-high speed type

Using a special reflux system, the maximum speed can reach 5m/s (conventional products are about 1-2m/s).

4. Golden rules for selection

Load calculation

Considering vertical force, lateral force and overturning moment at the same time, it is recommended to use the selection software provided by the manufacturer for force analysis.

Protection design

General environment: dustproof sheet

Metal debris: scraper plate

Liquid environment: fully enclosed

V. Maintenance points

Lubrication cycle:

Grease lubrication: every 100km or 6 months

Oil lubrication: continuous working environment requires oil system

Cleaning method:

Use special guide rail cleaner, and do not use corrosive solvents such as acetone

Life warning:

When the operating noise increases by 15dB or the temperature rise exceeds 20℃, it should be checked immediately

VI. Conclusion

According to statistics, the global linear guide market size is expected to reach US$5.8 billion in 2025, with a compound annual growth rate of 7.2%. As a mechanical engineer, a deep understanding of the mystery of this "precision runway" can inject a stronger sports gene into the equipment design. Next time when you see the smooth cutting of CNC machine tools, if you have any needs, please choose our shuntai, shuntai will provide you with the best service and technical guidance.
