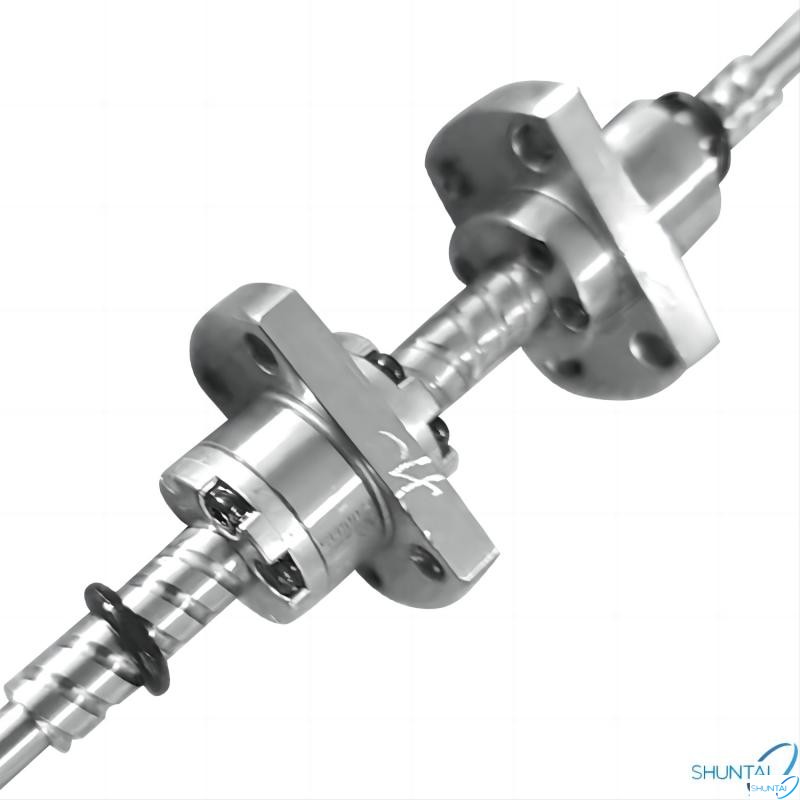

Ball screw SFH Left thread ball screw used in CNC machine tools

Ball screw SFH Left thread ball screw used in CNC machine tools

A ball screw is a device that converts rotary motion into linear motion and is commonly used in industrial machinery. It consists of a ball thread and a ball recirculating track, and the conversion of rotational motion and linear motion is realized by rolling the balls between the ball thread and the ball recirculating track







Product name Ball screw
Model Number SFH
Brand Name SHUNTAI
Material  GCr15 Bearing steel, Steel, Bronze
Manufacturing Process Rolled screw, ground screw
Feature Long Operating Life
Delivery 7 Days
Shipping Port  Shanghai




Please watch our ball screw video

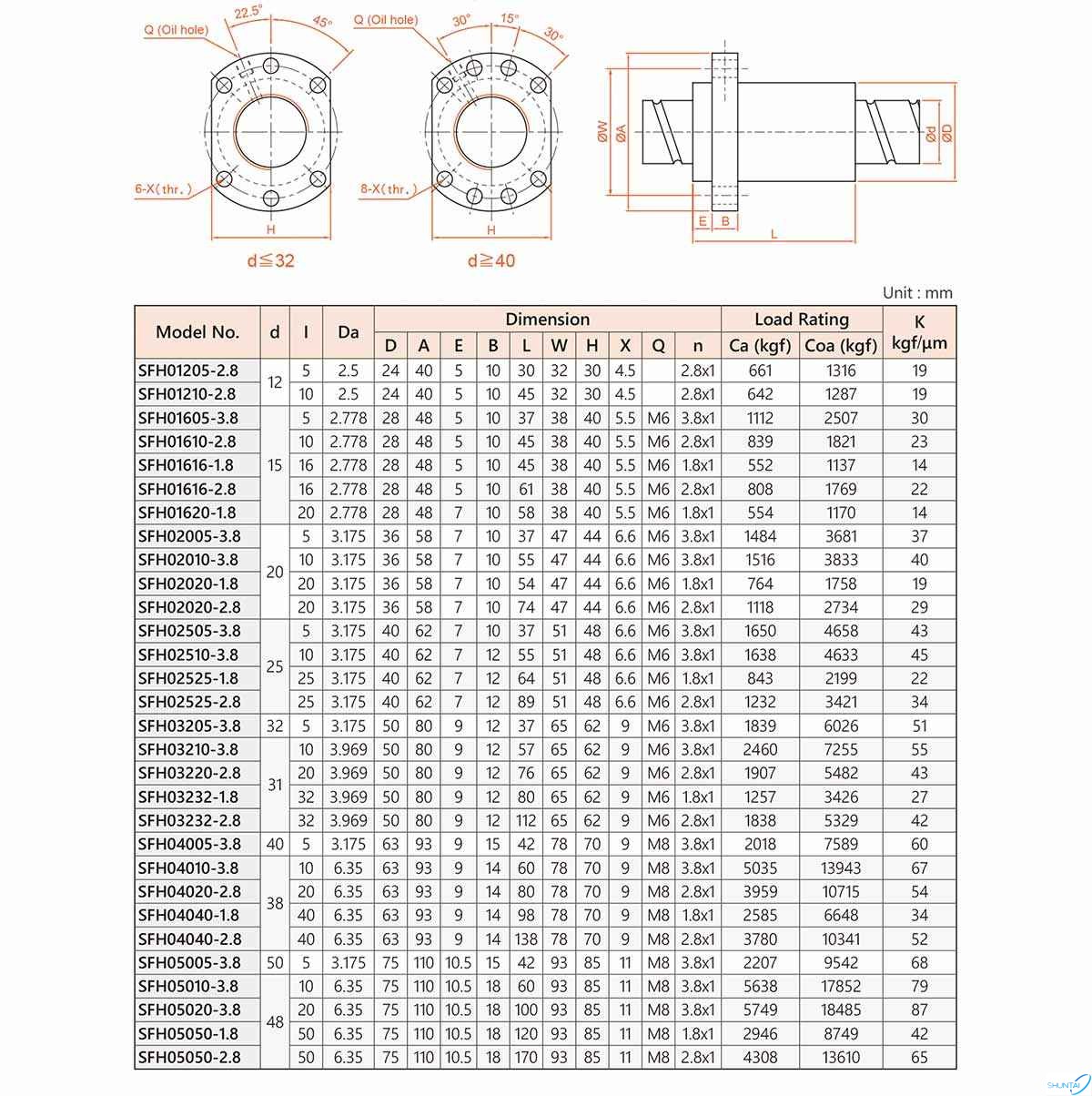

Please view our ball screw data sheet


Internal circulation ball screw
structure
The internal circulation ball screw is composed of a screw, a nut, a steel ball and a return cover. The steel ball adopts a single circle circulation, and the return cover spans and connects two adjacent ball grooves. The steel ball changes the direction through the return cover, forming a single closed return path. Since the return cover is assembled inside the nut, it is called an internal recirculation ball screw.

feature
Suitable for general lead, small size nut.
