KK Linear module linear sliding table china synchronous belt single axis multi-axis linear robot

KK Linear module linear sliding table china synchronous belt single axis multi-axis linear robot

Linear modules, sometimes referred to as industrial robots or linear modules, are mainly a mobile platform driven by an electric motor, composed of ball screws and U-shaped linear sliding guides. The sliding seat serves as both the driving nut of the ball screw and the guide slider of the linear slider.







Product name Linear Module System
Model Number KK
Brand Name SHUNTAI
Material  GCr15 Bearing steel, Steel
Using range Machining center, injection machine, machine tool, precision processing machine, automation device, etc
Feature Long Operating Life
Delivery 7 Days
Shipping Port  Shanghai









Please refer to our module video

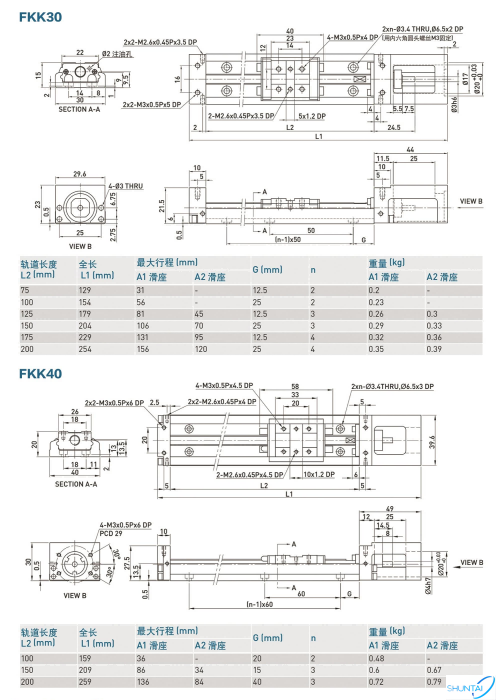

Please refer to the parameter table of our module




Detail images about modules

Raw material

High grade steel from Germany and Japan; Products high precision, low noise, high wear resistance.

Process

Original TBI-SFS high speed mute screw



Limit switch

The polarity reverse connection protection circuit makes the module more efficient.

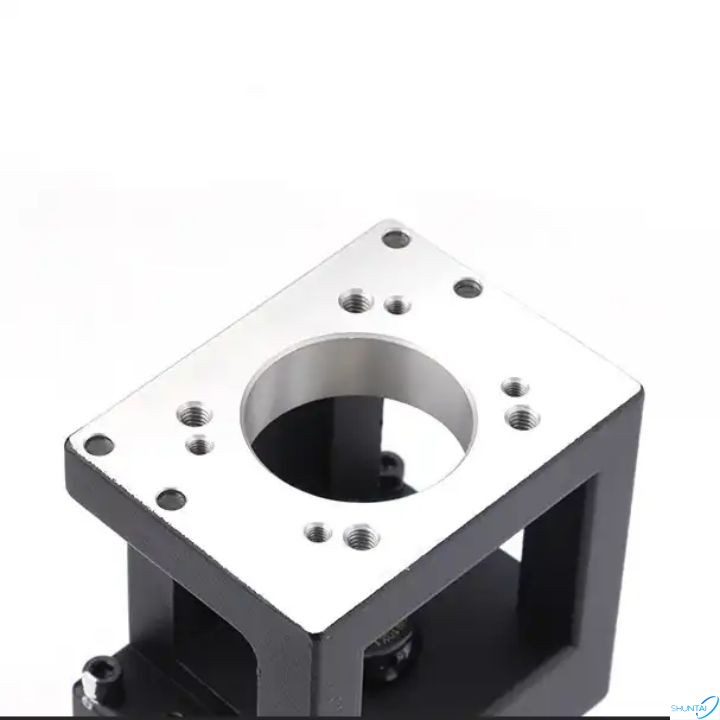

High strength support seat

High strength aluminum material, CNC precision machining, smooth surface, every screw hole to ensure the stability of the sliding table.



High rigidity over load bearing

Hiwin module quality assurance, can bear up and down left and right direction load.



Use in multiple scenarios

Machining, lathes, automation equipment, etc Linear guide rail with high rigidity, long life, good resolution, easy installation
